DIMENSIONS

Indoor W x H x D	99.8 cm x 32 cm x 22.8 cm
Indoor Unit Weight	14 kg
Outdoor W x H x D	79 cm x 62 cm x 29.8 cm
Outdoor Unit Weight	40 kg

GENERAL

Refrigerant	R410A
Remote Control	Yes
Cooling Capacity	7100 W
Brand	O General
Model Name	ASGA24JCC
Type	Split
Capacity in Tons	2 Ton
Color	White
Cooling and Heating	No
Operating Modes	Dry Function, Economy Mode, Coil Dry
Compressor	DC Twin Tropical Rotary
In The Box	1 Indoor Unit,1 Outdoor Unit,Remote Control,User Manual,Warranty Card
Technology Used	All DC Inverter Technology

ADDITIONAL FEATURES

Compressor Insulation Blanket Inner Groove: Copper Tube Sine-wave DC Inverter Control Height Difference: 20 m High Density Multi-path Heat Exchanger Power Coated Outdoor Unit Moisture Removal: 3 L/h Connection Method: Indoor (Flare) Auto Changeover Connection Pipe Size: Gas - 15.87 mm, Liquid - 6.35 mm Auto Shut Flaps i-PAM Control Models Ind

CONVENIENCE FEATURES

Quiet Mode	Yes
Timer	Yes
Auto Restart	Yes
Additional Features	Compressor Insulation Blanket,Inner Groove: Copper Tube,Sine-wave DC Inverter Control,Height Difference: 20 m,High Density Multi-path Heat Exchanger,Power Coated Outdoor Unit,Moisture Removal: 3 L/h,Connection Method: Indoor (Flare),Auto Changeover,Connection Pipe Size: Gas - 15.87 mm, Liquid - 6.35 mm,Auto Shut Flaps,i-PAM Control Models,Indoor Noise Level: 33 dB,Pipe Length Maximum (Pre-charged): 15 m,BLDC Motor Indoor Unit,Anti-corrosion Treatment for ODU and Heat Exchanger Fins,Long Pipe,Hea
Other Convenience Features	Program Timer, Sleep Timer

BODY AND DESIGN FEATURES

Condenser Fin Type

Blue Fin

AIR FLOW FEATURES

Air Flow Direction	2 Way Direction
Other Air Flow Features	Automatic Air Flow Adjustment (Adjust), Comfortable Air Flow, Multi Air Flow, Large Outdoor Fan, Double Swing Automatic 3D, Air Flow High: 648 CFM, Power Air Flow Dual Flaps

FILTER FEATURES

Deodorizing Filter	Yes
Other Filter Features	Removable and Washable Panel

AIR FLOW & FILTER FEATURES

Air Flow Direction	2 Way Direction
Other Air Flow Features	Automatic Air Flow Adjustment (Adjust), Comfortable Air Flow, Multi Air Flow, Large Outdoor Fan, Double Swing Automatic 3D, Air Flow High: 648 CFM, Power Air Flow Dual Flaps
Deodorizing Filter	Yes
Other Filter Features	Removable and Washable Panel

POWER FEATURES

Power Requirement	AC 220 - 240 V, 50 Hz
Power Consumption	2450 W
Operating Current	10.8 A

PERFORMANCE FEATURES

EER

2.9 W/W

SERVICES

Installation Details	Flipkart will facilitate Installation & Demo at time of your convenience from an brand authorized service engineer,Flipkart will communicate the day and time slot of the scheduled Installation & Demo through a SMS and the same information will also be available in your order details page,The Installation of Air-conditioner is charged extra to customer at the time of installation and needs to be paid directly to the service engineer. Standard installation charges for split AC will be Rs. 1530 (in
Other Included Services	Two Free Services of AC within Warranty Period on Demand
Technician Visit Details	Authorized Service Engineer will do the following,Repair / change the defective part,Provide replacement to the customer in case part/product not repairable (only after replacement request approved),Repair Services
Uninstallation Details	In case of Returns Flipkart's team will visit the customers location,Uninstall,Pack,Pick-up the product

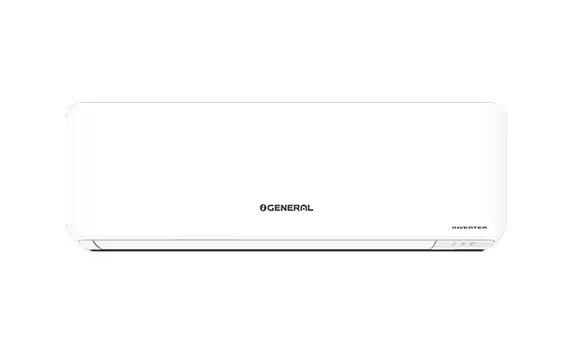

O GENERAL 2.0 Ton 4 Star Inverter Split AC
