DIMENSIONS

Indoor W x H x D	89 cm x 28.5 cm x 21.5 cm
Indoor Unit Weight	9.1 kg
Outdoor W x H x D	72 cm x 54.8 cm x 26.5 cm
Outdoor Unit Weight	28.5 kg

GENERAL

Refrigerant	R-22
Remote Control	Yes
Cooling Capacity	3500 W
Dehumidification	Yes
Brand	SAMSUNG
Star Rating	3
Model Name	AR12JC3JAMV
Type	Split
Capacity in Tons	1 Ton
Color	Morning Glory Violet
Series	Max
Compressor	Rotary
Operating Modes	Good Sleep, Single User Mode: Smart Saver, Auto Mode, Fast Cool, Fan Mode
Technology Used	Multi Jet Plus Technology

ADDITIONAL FEATURES

Compressor Type: Rotary (On / Off) Low Ambient Cooling: 15°C to 52°C Outdoor Noise High: 52 dB Moisture Removal: 1.5 L/hr Technical Information: SVC Valve - Liquid (OD x L): 6.35 mm, Gas (OD x L): 12.7 mm, Piping Length: 15 m, Piping Height: 7 m Anti-corrosion Fin Multi Jet Condensor: MJT+

CONVENIENCE FEATURES

Sleep Mode	Yes
Auto Restart	Yes
Other Convenience Features	24 hrs Timer, Indoor Temperature Display: 3 LED Type, Smart Installation, Beep On / Off

AIR FLOW FEATURES

Air Circulation	388.46 CFM
Air Flow Direction	4 Way Direction
Other Air Flow Features	Air Direction Control (Left / Right): Manual, Air Flow: Optimal Single Blade, Air Flow Control Step (Cool / Fan): 4, Air Direction Control (Up / Down): Auto

FILTER FEATURES

Dust Filter	Yes
Other Filter Features	Anti-bacteria Coating, Full HD Filter, Auto Clean (Self Cleaning)
Anti-bacteria Filter	Yes

POWER FEATURES

Power Requirement	AC 230 V, 50 Hz
Power Consumption	1090 W
Operating Current	4.6 A

PERFORMANCE FEATURES

Indoor Noise Level	High - 39 dB, Low - 29 dB
EER	3.21 W/W
Indoor Temperature Indicator	Yes

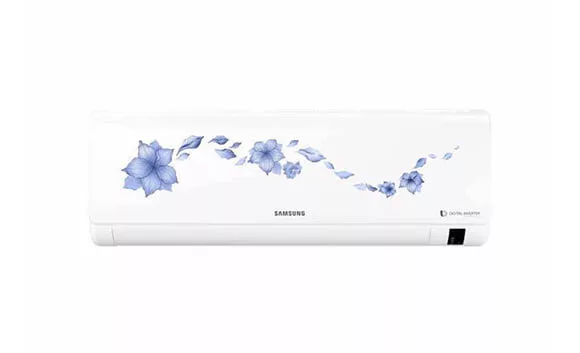

Samsung AR12JC3JAMV 1 Ton 3 Star Split AC
